STARLINK Mini Kit
The Starlink Mini is a compact, portable satellite internet kit that fits easily into a backpack . Designed for high-speed, low-latency internet on the go, it combines the dish and router into a single, lightweight unit. Perfect for RVers, campers, remote workers, and emergency responders who need reliable connectivity anywhere
Key Features
-
All-in-One Design – Dish and Wi-Fi router integrated into a single 1.1 kg device
-

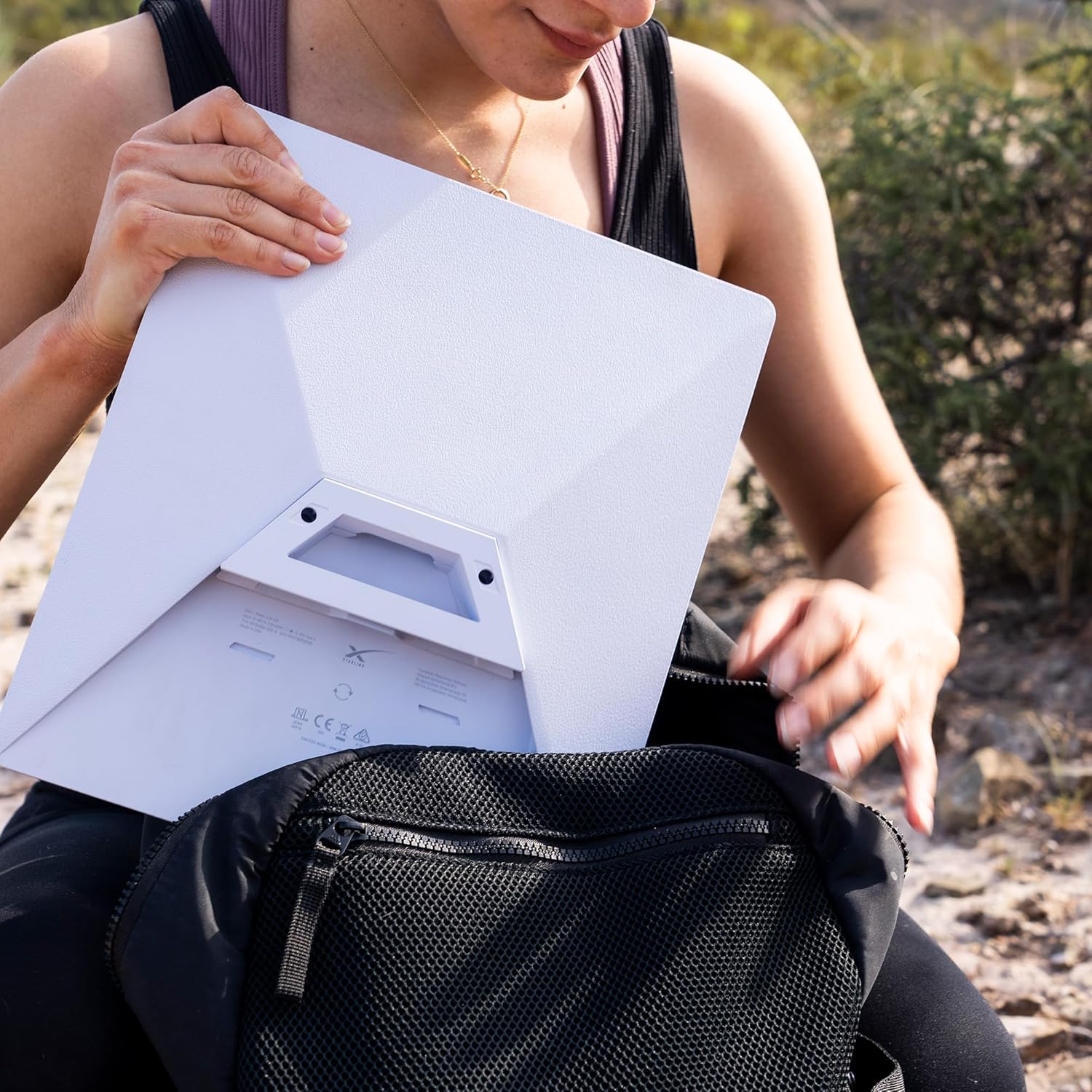

True Portability – Fits in a backpack; setup anywhere in minutes
-
IP67 Weather Resistance – Dust-tight and waterproof (with cable/plug installed)
-
DC Powered – Runs on 12-48V; can be powered by car outlet or USB-C battery pack (100W required)
-
Built for Extreme Conditions – Operates from -30°C to 50°C, survives 96+ kph winds, melts snow up to 25mm/hour
-

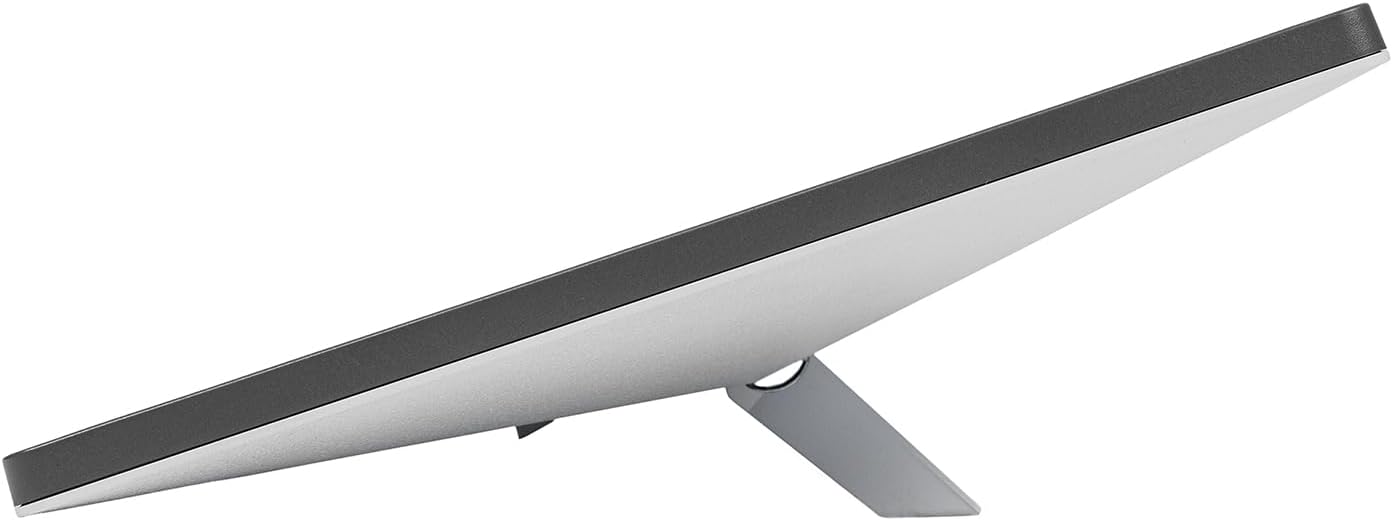

Kickstand & Mounts Included – Comes with kickstand, pipe adapter, and flat mount in the box
Technical Specifications
| Specification | Details |
|---|---|
| Antenna Type | Electronic Phased Array |
| Field of View | 110° |
| Orientation | Software-assisted manual orienting |
| Dimensions (Starlink) | 298.5 x 259 x 38.5 mm (11.75″ x 10.2″ x 1.45″) |
| Weight (Starlink only) | 1.10 kg (2.43 lb) |
| Weight (with Kickstand) | 1.16 kg (2.56 lb) |
| Weight (Kit + 15m Cable) | 1.53 kg (3.37 lb) |
| Package Weight | 2.89 kg (6.37 lb) |
| Package Dimensions | 430 x 334 x 79 mm (16.92″ x 13.14″ x 3.11″) |
| Environmental Rating | IP67 Type 4 (with DC cable & plug installed) |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Wind Survival | 96+ kph (60+ mph) operational |
| Snow Melt | Up to 25mm per hour (1 inch/hour) |
| Average Power | 25-40W |
| Input Rating | 12-48V, 60W max |
| USB-C PD Requirement | 100W, 20V/5A minimum (with accessory cable) |
| Wi-Fi Standard | 802.11 a/b/g/n/ac (Wi-Fi 5) |
| Radio | Dual Band, 3×3 MU-MIMO |
| Ethernet Ports | 1x Latching LAN port with Starlink Plug |
| Coverage | Up to 112 m² (1,200 ft²) |
| Max Devices | 128 connected devices |
| Security | WPA2 |
| Mesh Compatible | All Starlink mesh systems (not 3rd party) |
| Color | White |
What’s Included in the Box
| Component | Quantity |
|---|---|
| Starlink Mini (with integrated Wi-Fi) | 1 |
| Kickstand | 1 |
| Mini Pipe Adapter & Flat Mount | 1 |
| DC Power Cable (15m / 49.2 ft) | 1 |
| Power Supply (AC adapter) | 1 |
| Starlink Plug | 1 |
Note: The Mini Kit does NOT include a USB-C to barrel jack cable (sold separately on Starlink Shop) .
Power Supply Specifications (Included)
| Specification | Details |
|---|---|
| Dimensions | 91 x 44 x 51 mm (3.6″ x 1.7″ x 2.0″) |
| Weight | 0.2 kg (0.44 lb) |
| Environmental Rating | IP66 Type 4 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Input | 100-240V ~ 1.6A, 50-60 Hz |
Use Cases
Travel & RV
Fits in a backpack. Set up at campsites, rest stops, or tailgates. Works while parked or stationary.
Marine & Boating
Compact size fits on small boats, sailboats, and yachts. IP67 rated for marine environments.
Remote Work
Reliable high-speed internet from cabins, off-grid homes, or construction sites.
Emergency Response
Deploy in minutes for disaster recovery, field hospitals, or mobile command centers.
Overlanding & Off-Road
DC power compatible. Run directly from vehicle 12V outlet or solar-charged battery bank.
Wholesale & Bulk Information
| Parameter | Details |
|---|---|
| Minimum Order Quantity (MOQ) | Contact wholesale desk |
| Pallet Quantity | Available upon request |
| Lead Time | 5-10 business days |
| Warranty | 12-24 months (by region) |
| Packaging | Retail box (16.9″ x 13.1″ x 3.1″, 6.37 lbs) |
| Country of Origin | USA / China (by batch) |
Wholesale pricing available for orders of 24+ units. Contact our B2B desk for volume discounts.
Comparison: Mini vs. Gen 3 Standard
| Feature | Starlink Mini | Gen 3 Standard |
|---|---|---|
| Weight | 1.1 kg (2.4 lb) | ~4 kg (with router) |
| Wi-Fi | Wi-Fi 5 | Wi-Fi 6 |
| Coverage | 1,200 ft² | 3,200 ft² |
| Max Devices | 128 | 235 |
| Power | 25-40W (DC/12V) | 50-75W (AC only) |
| Ethernet Ports | 1 | 2 |
| Best For | Portability, travel | Home, office, permanent install |
Why Buy From Us?
-
✅ Factory-sealed, genuine Starlink Mini kits
-
✅ True wholesale pricing – No retail markups
-
✅ Regional warehouses (North America, EU, APAC)
-
✅ Serial number manifests provided for bulk orders
-
✅ Dedicated wholesale support
Frequently Asked Questions
Can the Mini be used while moving (in-motion)?
No. The Starlink Mini is designed for stationary use only. In-motion use requires the Flat High-Performance dish.
Can I power it from a USB-C power bank?
Yes, but you need the Starlink USB-C to Barrel Jack Cable (sold separately) and a power bank that delivers 100W (20V/5A) minimum .
Does the Mini work with my existing Starlink subscription?
Yes, but you may need to modify your service plan. Check with Starlink support for plan compatibility.
Is the router built-in or separate?
Built-in. The dish and router are one integrated unit .
Can I add mesh nodes?
Yes. Compatible with all Starlink mesh nodes (Gen 2 and Gen 3). Not compatible with third-party mesh systems .
What’s the warranty period?
-
United States: 12 months
-
European Union: 24 months
-
Check your region for specific coverage
